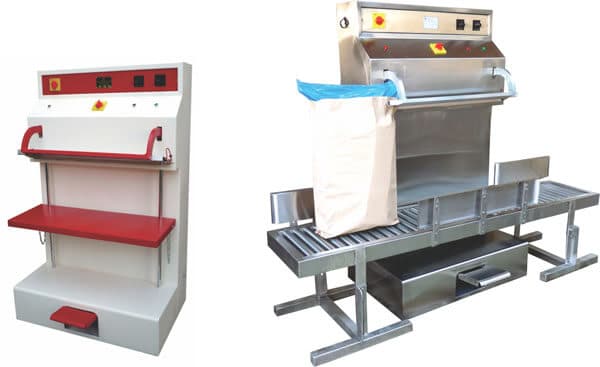

Vertically mounted sealers and trim sealers are designed as heavy duty for to seal bulk bags. The horizontal movements of the sealing jaws are allowing them to over hand the work area. The sealing jaws assembly is mounted on a floor standing frame and through adjustable platform, different height bags can be sealed. Sealers are available in Foot Pedal Press as well as in pneumatically controlled semi- automatic model PSAVM Series. Both series Machines are available from 12” sealing length to 40” sealing length.

  • Seals materials up to 40″ wide
  • Seal width is 2 mm- 3 mm- 5 mm- 8 mm
  • Two Parallel seals on request
  • Equipped with a Electronic Timer. Adjusting the sealing time provides for different material thickness.
  • Light indicates when seal is done. Once the correct time is set, the sealer will provide a perfect, consistent, flat seal every time.
  • Easy to operate. Simply set the timer, insert bag between the sealing bars, press down on the foot pedal and release after indicator light goes-off.
  • Foot Pedal Press Operation
  • Horizontal jaw movement
  • Seals polyethylene bags and any thermoplastic materials quickly and efficiently
Vertically Mounted Heat Sealing Machine to Seal Bulk Bags
Vertically mounted sealers
