This is a pneumatic sealing machine with a provision of vacuum system.

SALIENT FEATURES
  • Pneumatically Controlled Semi-Automatic Operation
  • Available in Impulse Type as well as in Direct Heat Seal Type
  • Sealing Length : 375 mm to 1100 mm
  • Sealing Width : 3 mm to 8 mm in Impulse Sealer and 10 mm to 12 mm in Direct Heat Seal type model
  • Bag Height : Min. 300 mm to Max. 1000 mm
  • Can be sealed any PE Film Bag in various thickness as well as Poly Laminated and Aluminum bag
  • Adjustable Platform
  • PLC Based Operation
  • Ergonomic Design
  • Interlocked design for safe operation
  • Emergency stop
  • Two parallel sealing arrangement in impulse sealer
  • Power Supply: 110v, 220 V, 440, 3 Phase AC power Supply
  • Can operate with or without vacuum system
  • User friendly design
SAMPLE
psa-vm-with-vaccum-system1

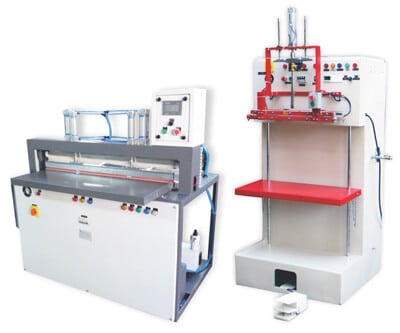

PSA-VM-With-Vacuum-System
