This LAB 150 Model is designed as a versatile Laboratory Instrument for use by film manufacturers, package engineering department and other laboratories or agencies who involved in the development of heat sealing specifications for various types of flexible thermoplastic materials.

  • Pneumatically controlled and Semi-Automatic + Manual operation type
  • Table mounting model
  •  Direct heat sealing machine suitable for to seal any type of thermoplastic  laminated aterials like combination of  PET, Poly, Foil, CPPetc. of any thickness and also Multilayer laminates of 2 layers to 11 layers
  • The Jaw length of the Machine is 150 mm and width is of 5 mm or 10 mm or 12 mm
  • M.S. Chrome plated jaw of continuous sealing in both upper and lower jaws in plain or corrugated or diamond design
  • Digital Temperature Indicating Controller of 0 to 300 degree centigrade with PID Control facility with an accuracy of +/- 1 degree centigrade
  • Digital Timer for Heating & Cooling
  • FRLG Pressure of 0 to 75 PSI
  • Jaw with special coated
  • Foot Pedal Switch
  • Mild steel or stainless steel fabricated structure
  • Painted with double epoxy powder coated paint

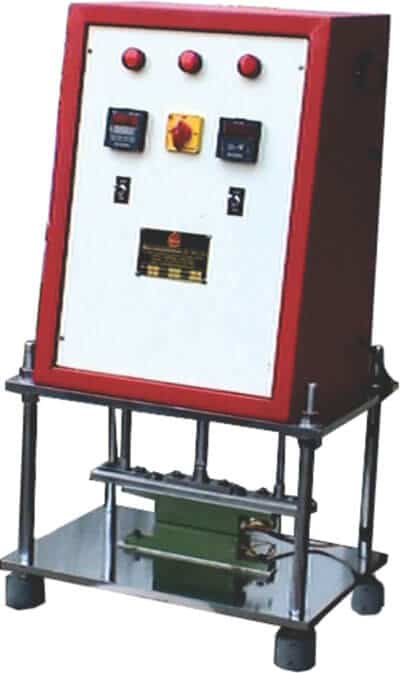

Semi-Automatic + Manual Laboratory Type Heat Sealer Machine
Manual Laboratory Type Heat Sealer Machine Sample
